Parallel circuits are fundamental in electronics and can be found in various configurations. A resistor parallel circuit is one of the simplest forms, and understanding its behavior is essential for analyzing more complex systems. In a parallel configuration, each component is connected across the same two points, allowing current to flow through multiple paths. This setup enables the distribution of current among branches, which is crucial for designing efficient and safe electronic systems.

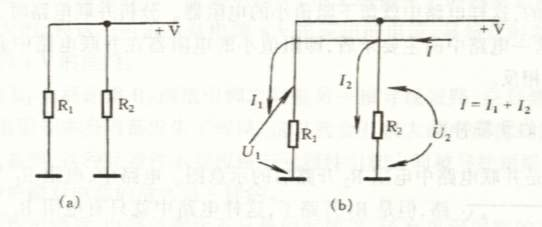

Figure 1-31 illustrates a basic resistor parallel circuit. In this setup, resistors R1 and R2 are connected in parallel, with +V serving as the DC operating voltage. Understanding the characteristics of such circuits involves several key principles:

1. Total Resistance: In a parallel circuit, the total resistance is always less than the smallest individual resistor. The formula for calculating the equivalent resistance (R_total) is 1/R_total = 1/R1 + 1/R2 + 1/R3 + ... For example, if two 20kΩ resistors are connected in parallel, the resulting resistance will be 10kΩ.
2. Total Current: The total current in a parallel circuit is the sum of the currents flowing through each branch. If I1 is the current through R1 and I2 is the current through R2, then the total current I = I1 + I2. This principle applies even when more than two resistors are present in the circuit.
3. Current Distribution: The current in each branch is inversely proportional to the resistance of that branch. A lower resistance allows more current to flow. Using Ohm’s Law (I = V/R), it becomes clear that a smaller resistor will carry a larger current, while a larger resistor will carry a smaller current.
4. Voltage Across Resistors: In a parallel circuit, all components share the same voltage. This means that the voltage across R1 and R2 in Figure 1-31(b) is equal to the DC operating voltage +V. This property is essential for ensuring consistent performance across different branches of the circuit.
5. Shunting Action: Parallel circuits act as shunts, dividing the total current into multiple branches. This allows for precise control of current distribution, making parallel connections ideal for applications where specific current levels are required in different parts of the circuit.
6. Open Circuit Behavior: If one resistor opens in a parallel circuit, the remaining resistors continue to function. However, the total resistance increases, and the overall current decreases. This is illustrated in Figure 1-32, where R2 is open, leaving only R1 in the circuit.
7. Short Circuit Effects: A short circuit in a parallel circuit causes a significant increase in current. This can lead to overheating and potential damage to the power supply or other components. As shown in Figure 1-33, a shorted resistor effectively creates a path of zero resistance, leading to dangerously high currents.

Understanding these principles is essential for designing and troubleshooting electronic circuits. Whether dealing with simple resistor networks or more complex systems, the behavior of parallel circuits plays a critical role in determining the performance and reliability of electrical devices.
